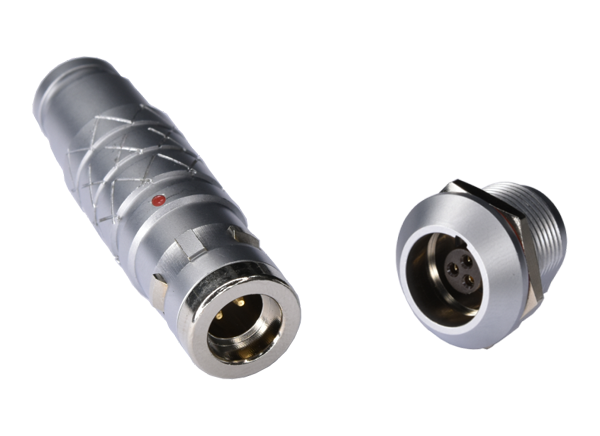

Amphenol LTW FLO+ Push-Pull Connectors

Amphenol LTW FLO+ Push-Pull Connectors offer key advantages over FLO Connectors, including IP68 waterproof protection when unmated and with no epoxy or glue required. Amphenol LTW FLO+ Push-Pull Connectors also provide added assembly efficiency, with only six components compared to nine for the regular FLO connectors. The FLO+ series offers a 1.5A to 25A current rating, 2 to 19 pins, and 160V to 600V voltage rating.


  • FLO+ advantages over FLO series
    • Increases over 50% of cable assembly outputs in less than half the time
    • Eliminates epoxy and glue production process and fallouts to achieve IP68 environmental protection
    • Fewer parts to manage
    • More productivity with less manpower


  • Military
  • Testing and measurement equipment
  • HD video cameras
  • Non-invasive medical electronic equipment


  • 1.5A to 25A current rating
  • 2 to 19 pins
  • 160V to 600V voltage rating
  • Temperature range
    • -40°C to +125°C (receptacle / field installable)
    • -20°C to +80°C (overmolded cable)
  • Waterproof rating
    • IP68 receptacle (unmated)
    • IP68 field installable (mated)
  • Push-pull mechanism mating style
  • 21mΩ maximum contact resistance
  • 5000 cycles of durability

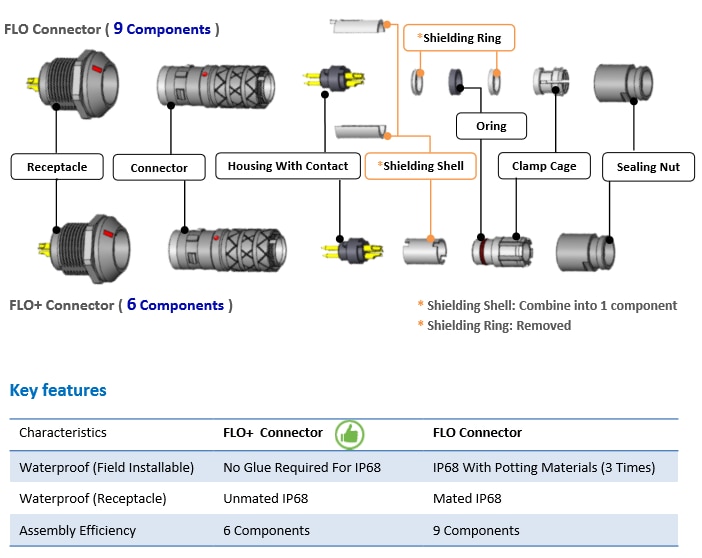

FLO vs. FLO+ Comparison

Chart - Amphenol LTW FLO+ Push-Pull Connectors
