Analog Devices Inc. MAX77642EVKIT Evaluation Kit
Analog Devices MAX77642EVKIT Evaluation Kit is a platform for evaluating the performance of the MAX77642. The MAX77642 Ultra Configurable PMIC is designed to provide power supply solutions for low-power applications where size and efficiency are critical. The MAX77642EVKIT Evaluation Kit offers Windows®-based software that provides a user-friendly graphical user interface (GUI) to manage the onboard electronic loads.
The Analog Devices MAX77642EVKIT Evaluation Kit is easy to use, assembled, and thoroughly tested.
Features
- Easy to use
- GUI-driven I2C interface
- Assembled and fully tested
- Onboard electronic loads
- Steady-state, transient, and random modes
- Demonstration of end-to-end analog multiplexer implementation
- Onboard ADC
Applications
- Next-generation hearables
- Fitness, health, and activity monitors
- Safety and security monitors
- Portable consumer devices

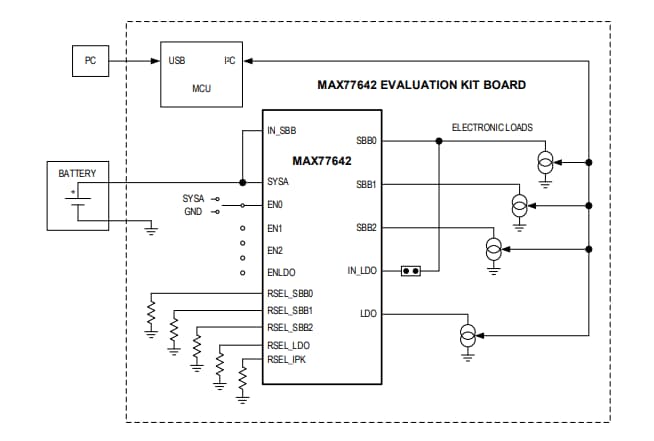

Simple Block Diagram
Top Board Layout
Bottom Board Layout
Associated Product
Analog Devices Inc. MAX7764x Ultra Configurable PMIC
Power Management IC featuring 93% peak efficiency SIMO buck-boost and integrated LDO.
Publicado: 2020-12-01
| Actualizado: 2024-08-02
