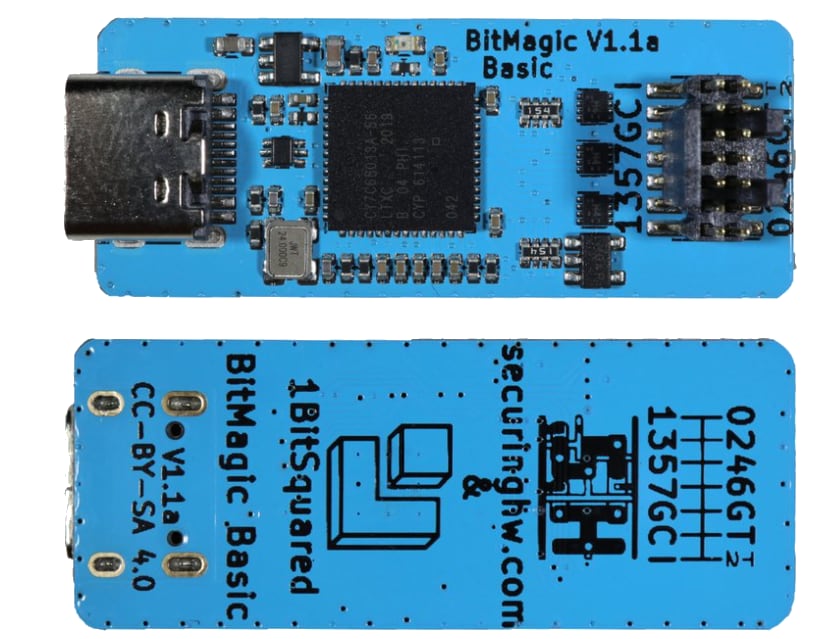

Crowd Supply Tigard Bitmagic Logic Analyzer
Crowd Supply Tigard Bitmagic Logic Analyzer combines Tigard with a BitMagic Basic Logic Analyzer for serial protocols' live debugging. BitMagic Basic is an open hardware FX2-based logic analyzer. BitMagic Basic supports eight channels sampled at up to 24Msps.
The Crowd Supply Tigard Bitmagic Logic Analyzer includes a labeled wiring harness and a 14-pin cable for connecting directly to Tigard. Pulseview is used to monitor all the communications between Tigard and a target system. This helps debug electrical, protocol, and signal integrity issues.
Features
- Designed specifically to work with the open source
Associated Products
Crowd Supply Tigard Applied Physical Attacks Online Kit
Creates the tool needed to teach hardware hacking basics on embedded and IoT systems.
