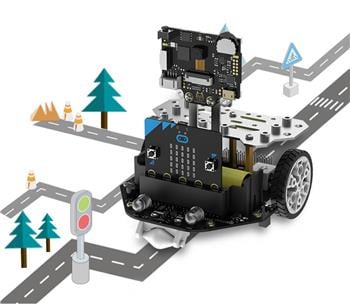

DFRobot micro: Maqueen Plus

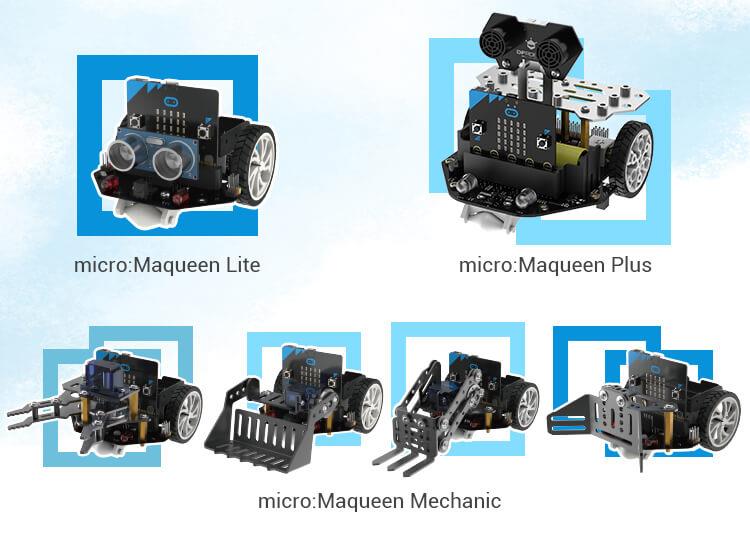

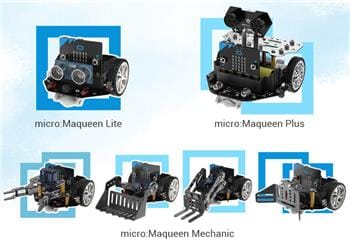

DFRobot micro: Maqueen Plus is a powerful and intelligent, advanced version of the micro: Maqueen Lite (4.0). The Maqueen Plus is optimized with better power management and a larger capacity power supply. It's ideal for use with the HuskyLens AI Vision Sensor and comes with a larger and more stable chassis. It also features more built-in functions and more expansion ports. It's suitable for classroom teaching and for after-school extended exercises and robot competitions.Specifications
- 4 AA batteries
- 5V charging voltage
- 900mA charging current
- 4h charging time
- 4 LEDs battery indicator
- N20 motor 260rpm drive motor
- Buzzer
- RGB-LED x 2
- P0 P1 P2 P8 P12 P13 P14 P15 P16 GPIO expansion ports
- I2C expansion ports x 3
- Servo expansion ports x 3
- Line tracking sensors x 6
- Analog + digital line tracking sensor output data
- Support line sensor calibration
- Infrared receiving sensor
- URM10 ultrasonic sensor
- Top metal plate
- M3 threaded connections x 12
- 50cm x 50cm map size
- 107mm x 100mm/4.21" x 3.94" dimensions
