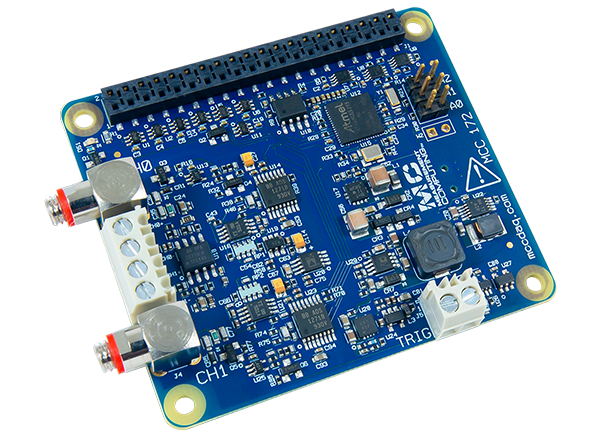

Digilent MCC 172 IEPE Measurement DAQ HAT for Raspberry Pi

Digilent MCC 172 IEPE Measurement DAQ HAT for Raspberry Pi features two channels for making sound and vibration measurements from IEPE sensors like accelerometers and microphones. The HAT features a 24-bit A/D per channel and a maximum sample rate of 51.2kS/s/ch. Up to eight MCC HATs can be stacked onto one Raspberry Pi.

Features

Two IEPE inputs
Two 24-bit, 51.2 kS/s A/D converters (one per channel)
AC coupled at ±5 V
10-32 and screw terminal connections for OEM support
Synchronous ADC conversions between multiple boards
Onboard sample buffers allow high-speed acquisition
External digital trigger input

Product Compliance:

HTC: 8471809000
ECCN: EAR99

Kit Contents

Choose between the MCC 172 DAQ HAT standalone, bundled with two coaxial cables (3 ft, with 10-32 plug to BNC jack), or the two coaxial cables by themselves
2x20 Header connector (plugs into the 40 pin GPIO connector on the Pi board)
Jumpers (3)
