Infineon Technologies Distance2Go Development Kit
Infineon Technologies Distance2Go Development Kit utilizes the BGT24MTR11 RF transceiver and XMC4200 32-bit Arm® Cortex®-M4 MCU series. This kit enables users to implement and test several sensing applications at the 24GHz ISM band, such as FMCW distance measurement, Doppler-based movement detection, Doppler-based direction of movement detection, and Doppler-based speed measurements of targets. The Distance2Go kit is preprogrammed using Infineon's DAVE™ development tool and consists of the BGT24MTR11 transceiver MMIC and the XMC4200 for signal processing and communication via USB.
Features
- Capability to detect distance of multiple targets and to detect motion, speed, and direction of movement (approaching or retreating)
- BGT24MTR11 24GHz highly integrated RF MMIC
- XMC4200 Arm Cortex-M4 32-bit industrial microcontroller
- Debug over Cortex 10-pin debug connector
- Integrated multiple-element patch antennas
- Small form-factor (4.5cm x 3.6cm) 24GHz ISM band module that can be used as development kit or mounted as daughterboard in systems
Applications
- Drone soft-landing
- Drone obstacle avoidance
- Robotics obstacle avoidance
- Tank level-sensing
- Intelligent switches
- Intelligent door openers
Kit Contents
- 24GHz demo board
- User manual
- Schematic and bill-of-materials of module
- SW GUI to operate kit
- FMCW FW and SW (also available as source code)
- Doppler FW and SW (also available as source code)

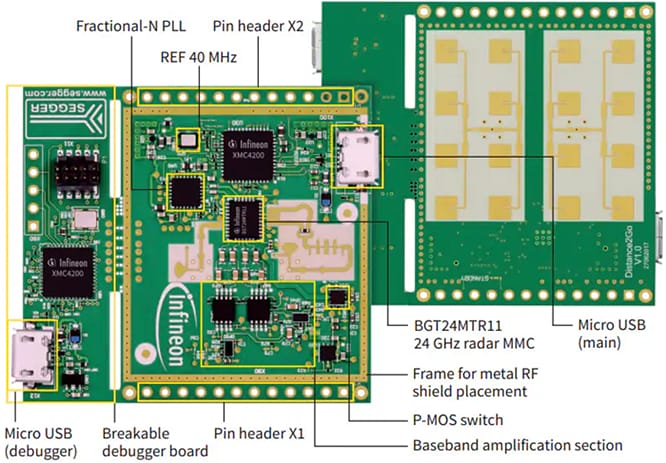

Board Layout
Block Diagram
Additional Resources
Associated Products
Infineon Technologies BGT24Mxx Silicon Germanium MMICs
For advanced presence detection that goes beyond the capabilities of main stream PIR.
