Infineon Technologies TLS820B2ELVSE Demo Board

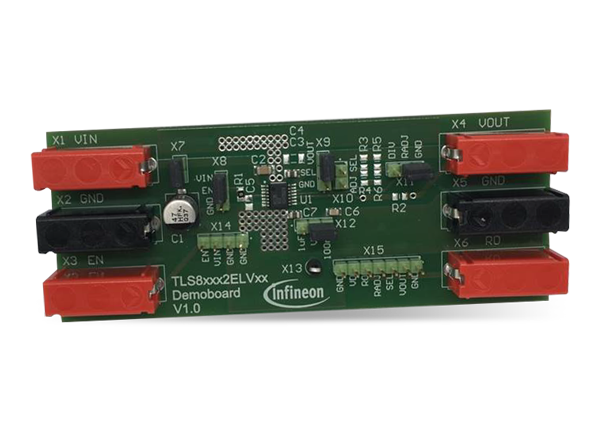

Infineon Technologies TLS820B2ELVSE Demo Board evaluates Infineon automotive LDOs with ultra-low quiescent current. This demo board allows for an easy plug-and-play solution to evaluate the TLS820B2EL regulator with all necessary external components already mounted on the board. The device is designed for all electronic control units (ECUs) connected to the battery within an automotive application, specifically body control modules and HVAC that only need an enable feature. The TLS820B2ELVSE demo board is ideally used in automotive general ECUs, secondary supply in ECUs, dashboard, cluster, and climate control applications.
