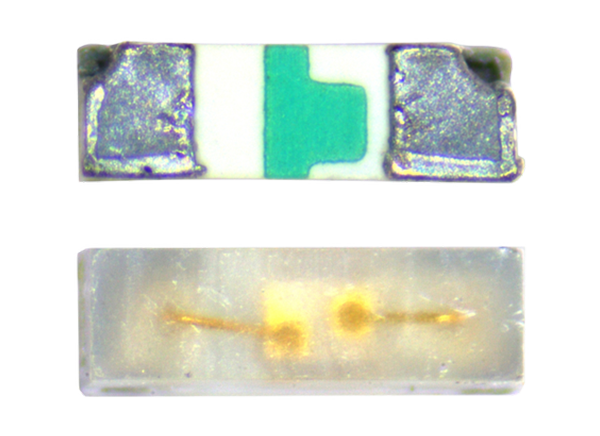

Inolux IN-S42DS Side View SMD LEDs are popular low-profile 0402 packages with versatile design capabilities. These PCB type molding style LEDs are available in 1mm x 0.55mm x 0.3mm dimensions. The IN-S42DS side view LEDs feature high reliability, high brightness, and include AlInGaP/InGaN technology. These side view SMD LEDs are available in red, blue, green, white, and yellow-green emission colors. The IN-S42DS LEDs can be used in consumer electronics, wearable, industrial equipment, and automobile aftermarket.

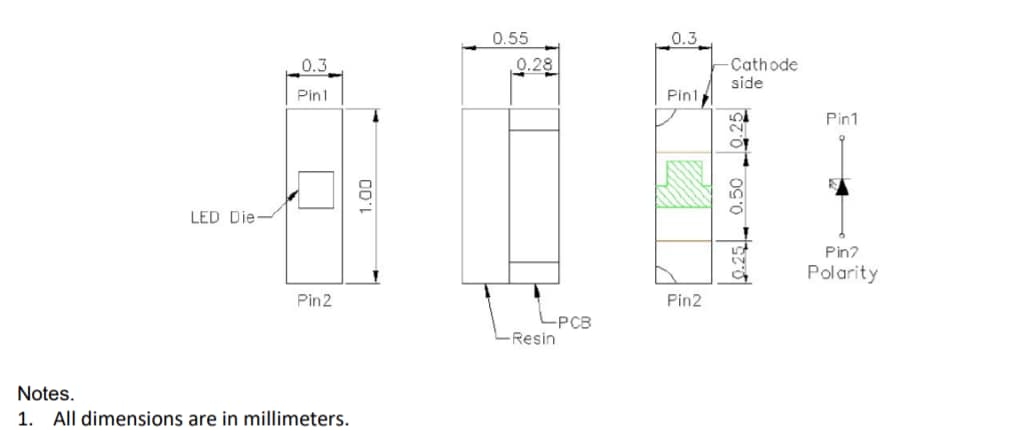

1mm x 0.55mm x 0.3mm dimensions
Red, blue, green, white, and yellow-green emission colors
2.4V to 3.25V range of maximum forward voltage (Vf)
-40°C to 85°C range of operating temperature
145° viewing angel
Inolux IN-S42BT5UW.80.45 White SMD LED
Comes in a popular low-profile package with versatile design capabilities.
