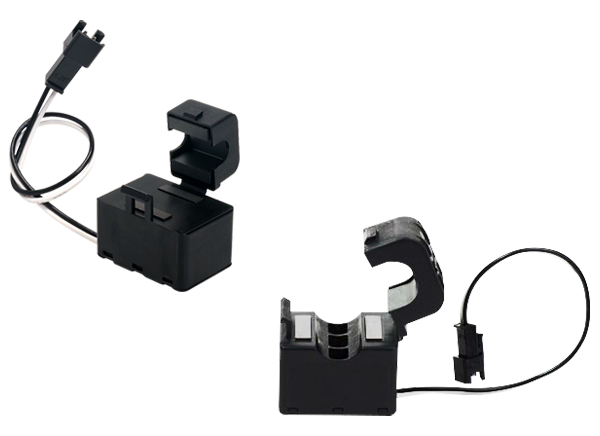

KEMET C/CT Clamp-On Current Sensors
KEMET C/CT Clamp-On Current Sensors measure the current in live wires, offer a compact, slim design, and a convenient snap-on feature. C/CT current sensors feature flat temperature characteristics and are RoHS compliant. These sensors are ideal for high-performance distribution boards, power conditioners, power monitoring systems, and inverters and industrial machinery.
Features
- Compact and slim design
- Flat temperature characteristics
- UL94V-0 flame retardant rated case
- RoHS compliant
Specifications
- 30A to 120A rated current
- 4000 ±80V or 1000 ±20V output voltage
- 7.5V output protection
- 500VDC to 100MΩ insulation resistance
- 3000 current transformation ratio
- −20°C to +60°C operating temperature range
Applications
- EMS current measurement
- High-performance distributions boards
- Power conditioners
- Power monitoring systems
- Inverters and industrial machinery

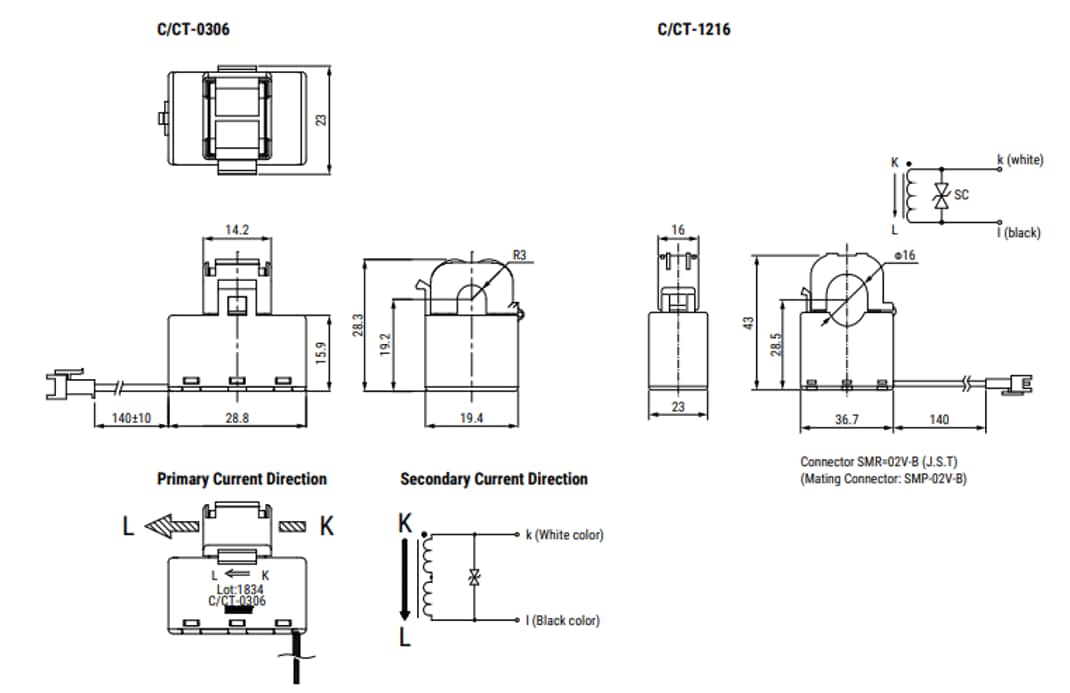

Dimensions (MM)
Learn More
KEMET Sensor Components
Includes current, thermal, and proximity detection sensors.
