Pulse Electronics BM62x PLC Transformers

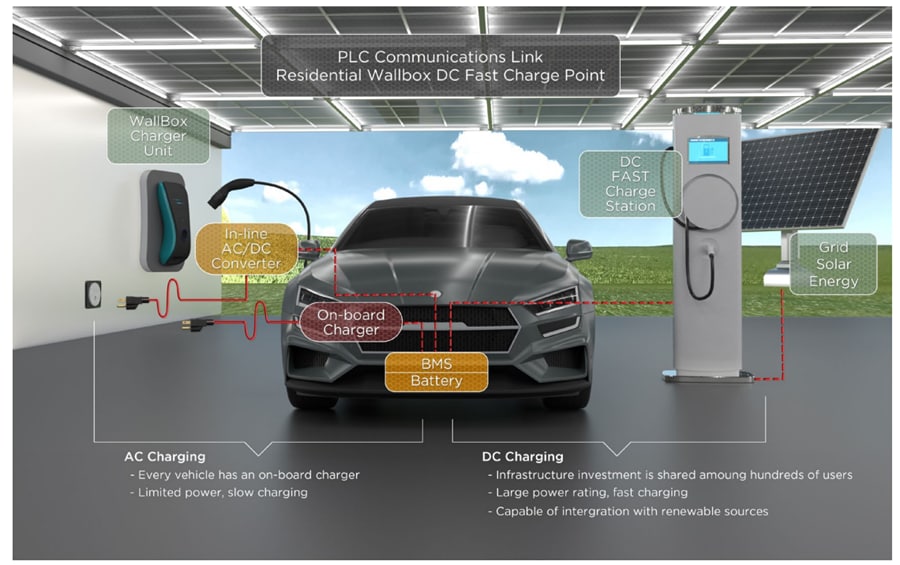

Pulse Electronics BM62x Power Line Communication (PLC) Transformers are designed with IEC-62368 for 250V main supply with 3MHz to 30MHz wideband frequency range. These transformers offer automotive options that meet AEC-Q200 and can be converted into ISO/IATF16949 and PPAP designs. The PLC transformers offer a turns ratio that supports a variety of PLC chipsets These transformers comply with J-STD-002, J-STD-020, and J-STD-075. The PLC transformers operate from -40°C to 125°C temperature range. These transformers are ideal for AC and DC charging.

Features

  • 3MHz~30MHz wideband frequency response range
  • -40°C to 125°C industrial and automotive temperature range
  • Eco-friendly - Halogen-free options
  • Turns ratio supports a variety of PLC chipsets
  • Supports IEC-62368 for off-line 16Vdc and 500Vdc supply lines
  • Automotive designs meet AEC-Q200 and are covered by ISO/IATF16949 and PPAP on request
Pulse Electronics BM62x PLC Transformers

Electrical Specifications

Chart - Pulse Electronics BM62x PLC Transformers

Additional Resources

View Results ( 18 ) Page
N.º de artículo Hoja de datos Longitud Ancho Altura Serie Empaquetado Banda de frecuencias Inductancia Resistencia CC máxima
BX6150NL BX6150NL Hoja de datos 14.48 mm 13.64 mm 6.22 mm BX Tube
BX6152NL BX6152NL Hoja de datos 11.3 mm 10.3 mm 7.62 mm BX Tube
BX6158NL BX6158NL Hoja de datos 11.31 mm 10.43 mm 7.3 mm BX Tube
BM6155NL BM6155NL Hoja de datos 10.6 mm 9.08 mm 10 mm BM Tube 3 MHz to 30 MHz 28 uH 100 mOhms
BM6210HLT BM6210HLT Hoja de datos 9 mm 6.9 mm 5 mm BM62xx Reel 3 MHz to 30 MHz 5 uH 500 mOhms
BM6220NLT BM6220NLT Hoja de datos 11 mm 9.5 mm 10 mm BM62xx Reel 3 MHz to 30 MHz 12 uH 500 mOhms
BM6230HLT BM6230HLT Hoja de datos 16.15 mm 14.8 mm 6 mm BM62xx Reel 3 MHz to 30 MHz 250 mOhms
BM6154NLT BM6154NLT Hoja de datos 10.6 mm 9.08 mm 10 mm BM Reel 3 MHz to 30 MHz 8 uH 60 mOhms
BX6153NL BX6153NL Hoja de datos 11.3 mm 10.3 mm 7.62 mm BX Tube
BM6154NL BM6154NL Hoja de datos 10.6 mm 9.08 mm 10 mm BM Tube 3 MHz to 30 MHz 8 uH 60 mOhms
