Texas Instruments IWRL6432FSPEVM Sensor Evaluation Module (EVM)
Texas Instruments IWRL6432FSPEVM Sensor Evaluation Module (EVM) is a form factor-optimized, easy-to-use 60GHz mmWave sensor evaluation kit based on an IWRL6432 device with an onboard FR4-based antenna. This board enables proximity sensing and provides access to point-cloud data over the UART interface and 3.3V power input. A USB-to-UART converter board can be used to access data and power the board via USB to connect to the Texas Instruments IWRL6432FSPEVM from a PC. This board is not provided with the kit and can be ordered separately (410-212). MmWave tools, demos, and software, including mmWave software development kit MMWAVE-L-SDK and RADAR-TOOLBOX, support this kit.
Features
- 57GHz to 64GHz mmWave sensor
- FR4-based PCB substrate
- Four receive (RX) and two transmit (TX) antennas with 120° azimuth field of view (FoV) and 80° elevation FoV
- Cost-optimized PCB rules include lower manufacturing cost, no micro vias, only through via, and no vias on the BGA pads
- Onboard DC-DC to provide 1.8V and 1.2V rails for power-optimized topology
Applications
- Industrial applications
- Automated door and gate, motion detector, occupancy detection (people tracking, people counting)
- Video doorbell, IP network camera, thermostat
- Air conditioners, refrigerators and freezers, vacuum robot
- Lawn mower, home theater, PC, or notebooks
- Portable electronics, televisions, tablets, earphones, smartwatches, gaming, home theater and entertainment
- Traffic intersection monitoring, gesture detection, proximity sensing
Kit Contents
- IWRL6432FSP evaluation board
- Breakout board
- Quick start guide
Additional Resources
- RADAR Toolbox for mmWave Sensors
- mmWave-L-SDK Software Development Kit (SDK)
- PuTTY Terminal for Implementation of SSH and Telnet for Windows and Unix Platforms
- Digilent PmodUSBUART - USB to UART Interface
- Code Composer Studio™ Integrated Development Environment (IDE)
- mmWave Sensing Estimator
- mmWave Radar Academy
- Schematic
- Bill of Materials
- Evaluation Module Database
- Evaluation Module Schematic, BOM, and Assembly Package
- PCB Layout
Block Diagram

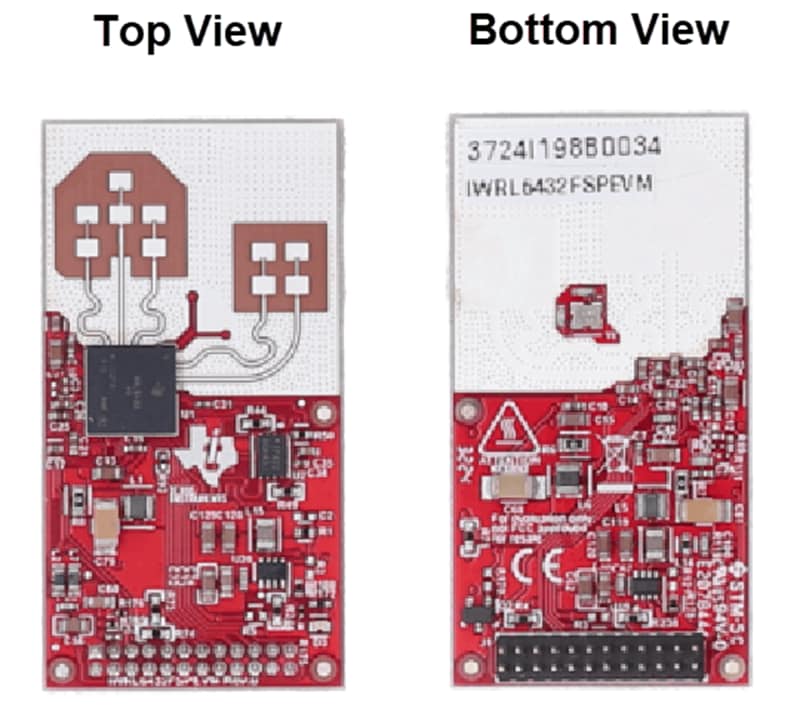

Board Layout
Related mmWave Radar Sensors
Texas Instruments IWRL6432 Industrial mmWave Radar Sensors
Based on the FMCW radar technology, and are capable of operation in the 57GHz to 63.9GHz band.
