Amphenol All Sensors ELVX Board-Mount Digital Pressure Sensors
Amphenol All Sensors ELVX Board-Mount Digital Pressure Sensors deliver superior accuracy and long-term stability through an innovative leadless, cross-coupled dual-die architecture. Designed for demanding environments, these ELVX sensors maintain exceptional performance across a wide temperature-compensation range. Each ELVX sensor is fully calibrated and digitally compensated, ensuring precise and repeatable output for applications where accuracy is critical. The leadless package enhances reliability and simplifies high-volume OEM integration, making these components ideal for medical devices, Heating/Ventilation/Air Conditioning (HVAC) systems, and instrumentation.
The Amphenol All Sensors ELVX family is recommended as drop-in replacements for Honeywell TruStability™ HSC/SSC footprints, enabling seamless design migration and second-source flexibility with minimal or no PSC changes. Optimized for non-corrosive, non-ionic working fluids such as air and other dry gases, the ELVX pressure sensors combine robust design with ease of integration, delivering best-in-class stability and performance for precision sensing applications.
Features
- ±0.5inH2O to ±60inH2O
- Gage or differential pressure
- Precision ASIC conditioning
- Digital I2C and SPI options
- 3.3V and 5V supply voltage options
- PCB surface mount packages
- Improved warm-up stability
Applications
- Medical devices
- Medical instrumentation
- Respiratory
- Portable/hand-held equipment
- Environmental controls/monitoring
- HVAC
- Industrial controls
Specifications
- 2.7VDC to 5.5VDC supply voltage range
- 270inH2O or 350inH2O proof pressure options
- 415inH2O burst pressure
- 415inH2O common mode pressure
- ±0.25%FSS accuracy
- 3ms maximum start-up time
- 0.46ms typical response time
- Temperatures
- Compensated
- 0°C to +50°C (+32°F to +122°F) standard
- -20°C to +85°C (-4°F to +185°F) industrial
- -25°C to +85°C (-13°F to +185°F) operating range
- +250°C (+482°F) maximum soldering temperature
- Compensated

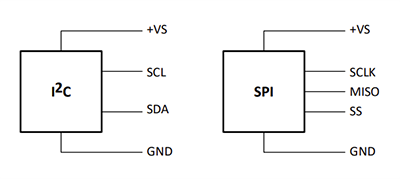

Circuits
