Lantronix Open-Q™ 660 µSOM Development Kit
Lantronix Open-Q™ 660 µSOM Development Kit is a cost-effective, high-performance, exposed board platform powered by the advanced Qualcomm® Snapdragon™ SDA660 processor. The Lantronix Open-Q™ 660 µSOM Development Kit exposed board platform provides an ultra-compact “micro SOM” form factor.
The Lantronix Open-Q 660 µSOM Development Kit is designed to quick-start the evaluation of the Open-Q 660 µSOM (Micro System on Module) and the development of advanced, intelligent, embedded, and IoT products.
The 660 µSOM Kit supports the Open-Q™ LCD / touch panel and optional 13MP camera module. The Kit has many GPIO, sensor, audio, and other expansion interfaces for Android application developers, OEMs, consumer manufacturers, hardware component vendors, camera vendors, and product designers.
Features
- Qualcomm® Snapdragon™ SDA660 SoC
- Powered by ultra-compact (50x25mm) Open-Q 660 µSOM
- Open-frame Mini-ITX Form-factor Carrier Board (170x170mm)
- USB Type-C with VESA DisplayPort video output
- Android™ 9
Kit Contents
- Carrier board
- SOM
- 12V power supply
- Quick start guide
- Access to full documentation
- SW updates
- Basic development kit support
Videos
Additonal Resources
Associated Products
Lantronix Open-Q™ 13MP Camera
Based on the 13MP Sony IMX214 and uses the Qualcomm ISP.

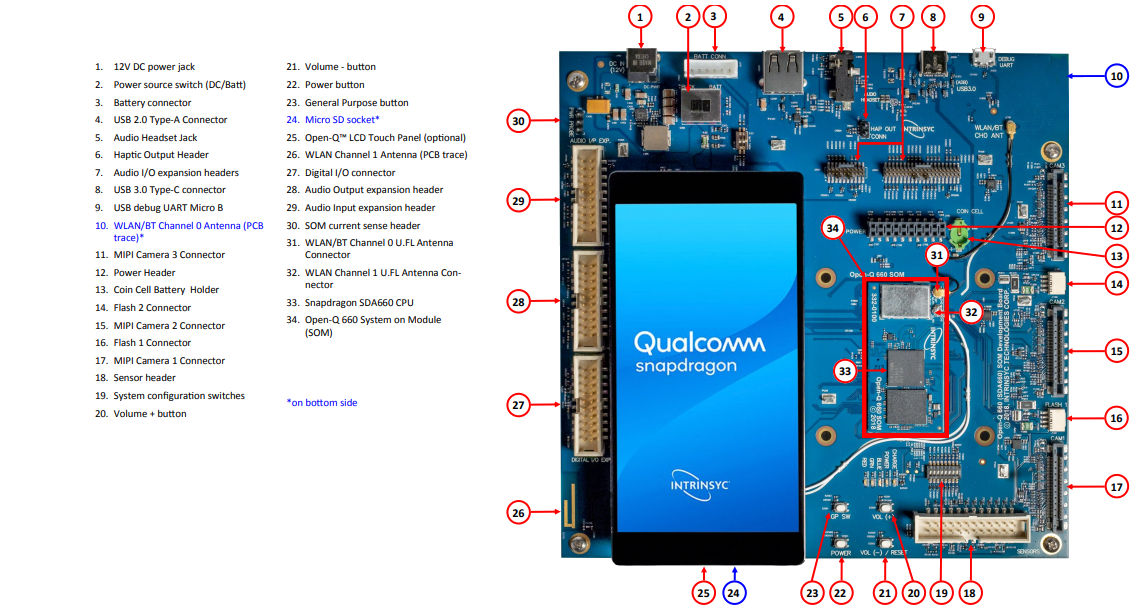

Board Layout

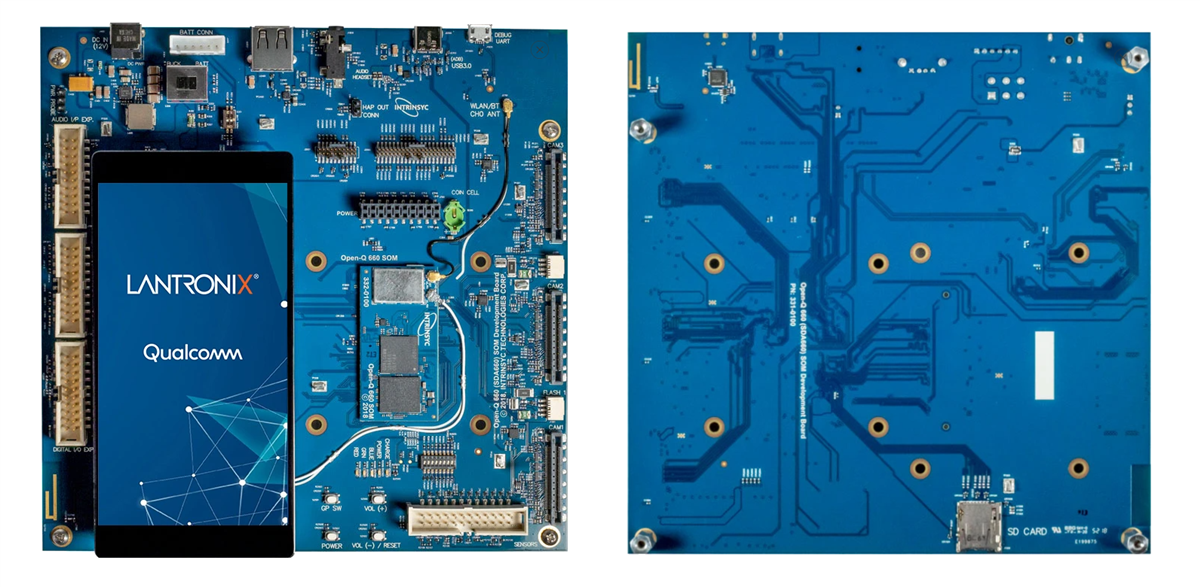

Overview

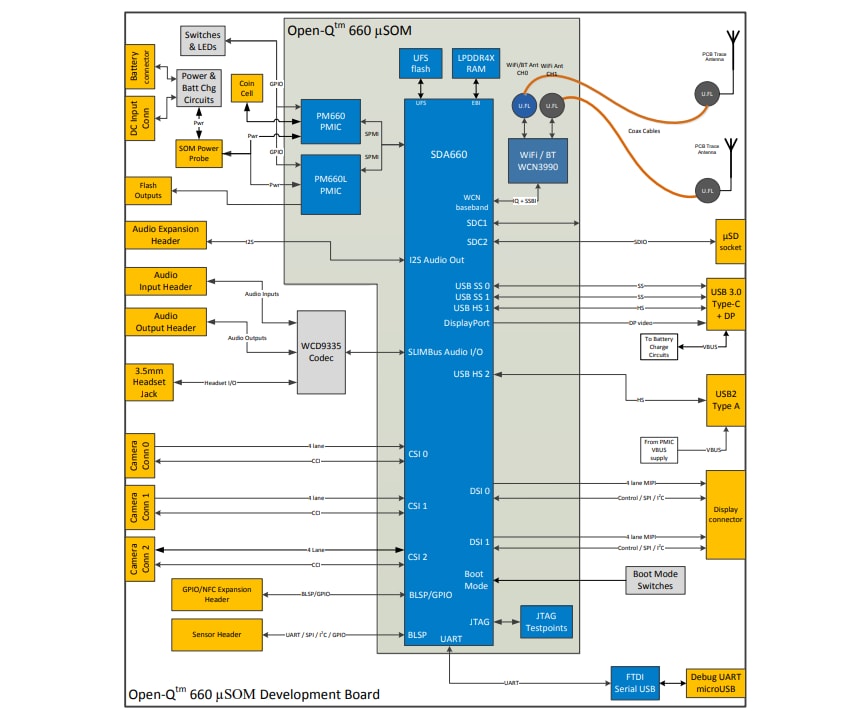

Block Diagram
